EinScan Trak Wireless Marker-Free Tracking System
EinScan Trak Wireless Marker-Free Tracking System

EinScan Trak Wireless Marker-Free Tracking System

$9,935.99

Avis de stock

Soyez averti lorsque ce produit sera à nouveau disponible
UGS: EINSCAN-TRAK

EinScan Trak 3D Scanner





EinScan Trak Specification

Specification Details
Work Mode Tracking Mode / Handheld Scanner Mode
Scan Mode Laser Mode
Light Source 19+19 crossed lines / 7 parallel lines / Single line
Resolution 0.05–10 mm
Volumetric Accuracy Up to 0.1 mm (Accuracy based on ISO-10360-13 and VDI/VDE 2643 part 3. Testing environment: Temperature: 20±0.5 ℃；Humidity: 40%~60%. Suggested operating temperature with high accuracy: 20~25 ℃)
Scan Speed 2,630,000 points/s
Working Distance Tracking Mode: 800–4000 mm Scanner Mode: 100–500 mm
Max FOV Tracking Mode: 4796 × 4174 mm @ 4000 mm Scanner Mode: 547 × 463 mm @ 500 mm
Tracking Volume Tracking Mode： 15 m³
Alignment Mode Tracking Mode: Tracking / Global Marker Scanner Mode: Marker / Global Marker / Feature
Camera Resolution Tracking Mode： Tracker Cameras: 5MP * 2

Scanner Mode： Depth Cameras： 2MP * 2, Texture Camera：5MP * 1
Output Formats STL, OBJ, PLY, 3MF, ASC
Laser Class Class 2
Operation Conditions -10°C to 40°C
Recommended PC Configuration OS：Win11 (64-bit); Note: macOS support will be available via future software/firmware updates

Processor：13th Gen lntel® Core™ i7-13650HX or above;

Graphics card：NVIDIA GeForce RTX 4060 or above;

VRAM：8 GB or above; RAM：64 GB or above, DDR5 dual-channel;

Interface：USB 3.0; LAN;
Minimum PC Configuration OS：Win11 (64-bit); Note: macOS support will be available via future software/firmware updates

Processor：13th Gen lntel® Core™ i7-13650HX or above;

Graphics card：NVIDIA GeForce RTX 3060 Laptop GPU;

VRAM：6 GB or above; RAM：32 GB or above, DDR5 dual-channel;

Interface：USB 3.0; LAN;
Power Source / Battery Life Tracking Mode：5.5 hours of continuous use (Tracker 5400 mAh Batteries *2; Scanner 5400 mAh Batteries *2)

Scanner Mode：3.5 hours of continuous use (5400 mAh Battery *1)
Interface Tracking Mode：USB type-C * 2

Scanner Mode： USB type-C * 1
Dimensions Tracker：462 x 68 x 54mm/ 18.15" x 2.68" x 2.13"
Spherical Scanner：244 x 186 x 238mm/ 9.57" x 7.32" x 9.37"
Handheld Scanner： 199 x 193 x 172mm/ 7.83" x 7.59" x 6.77"
Net Weight Tracker: 1.02kg/ 2.23 lbs
Spherical Scanner：1.46kg/ 3.21 lbs
Handheld Scanner：0.48kg/ 1.17 lbs
Certifications CE, FCC, RoHS, WEEE, FDA, SRRC, IP50

What Is In The Box

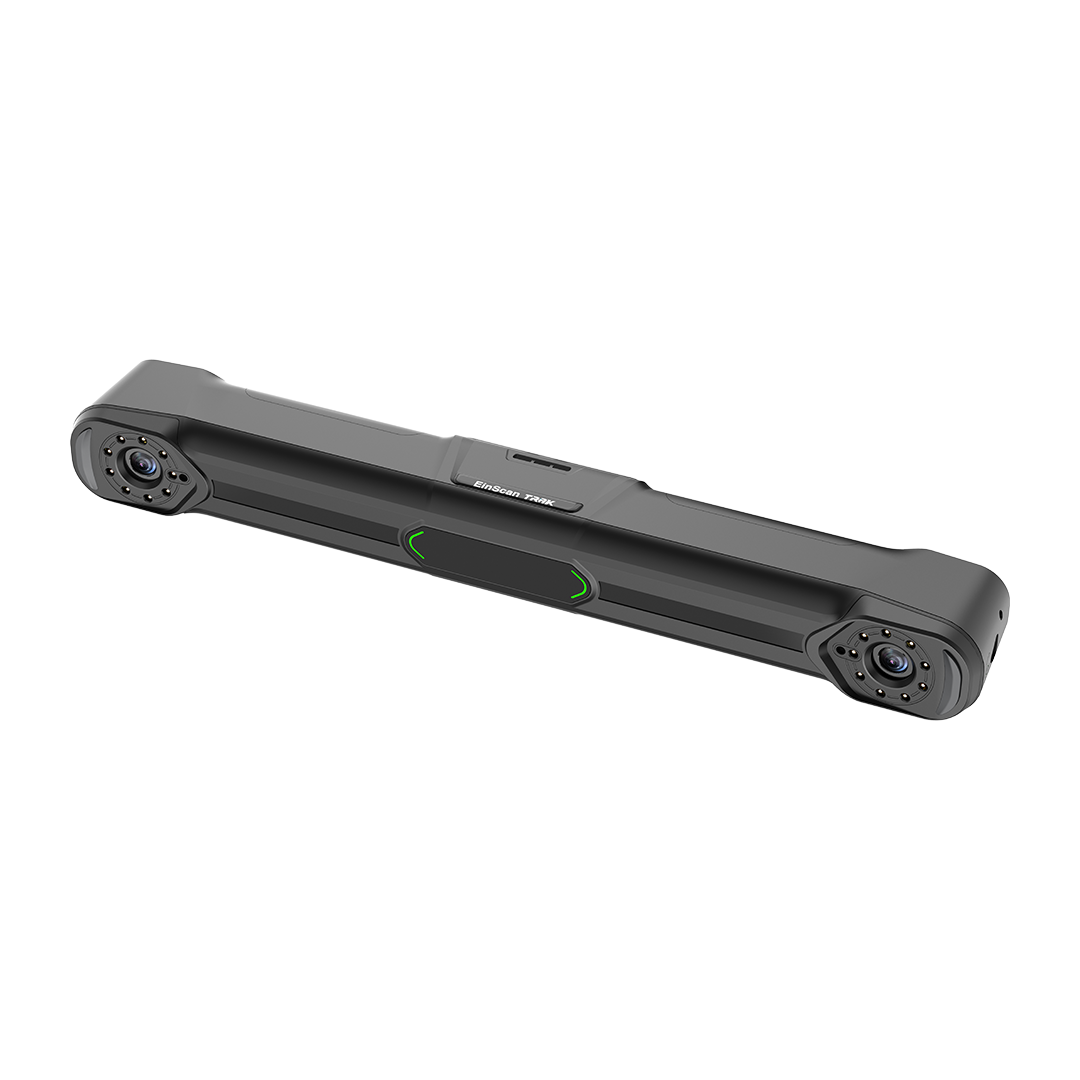

EinScan Trak-Tracker

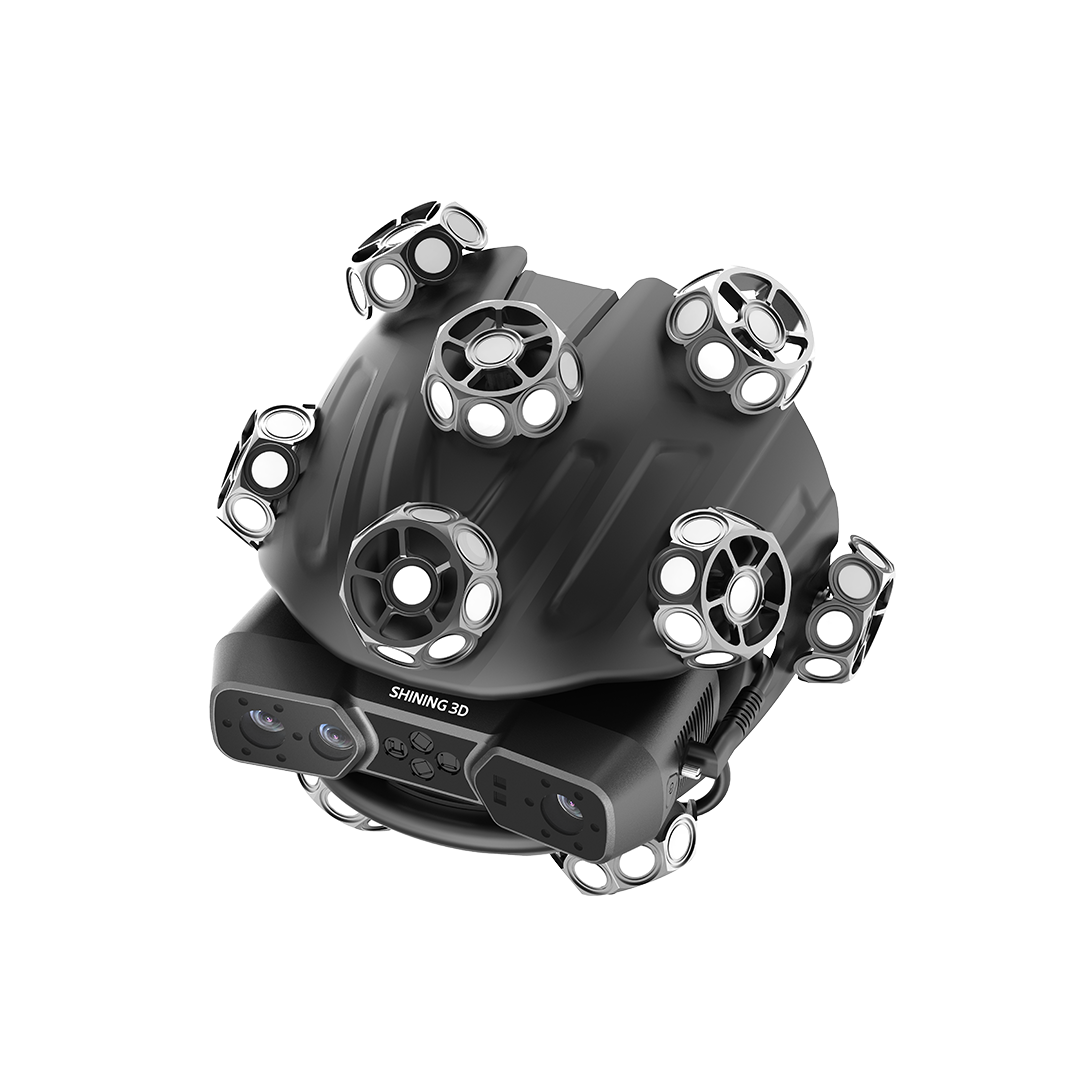

EinScan Trak-Spherical Scanner

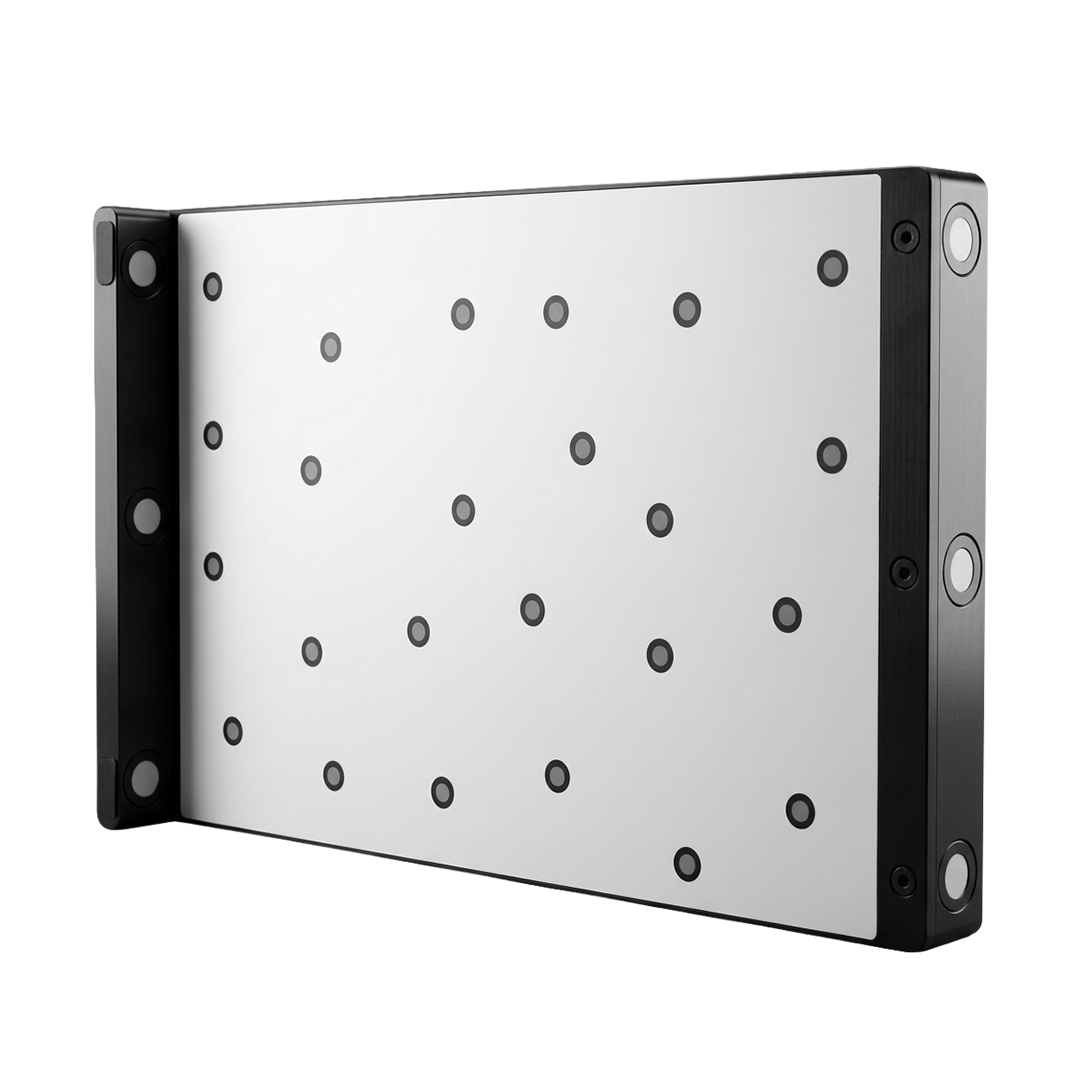

System Calibrator

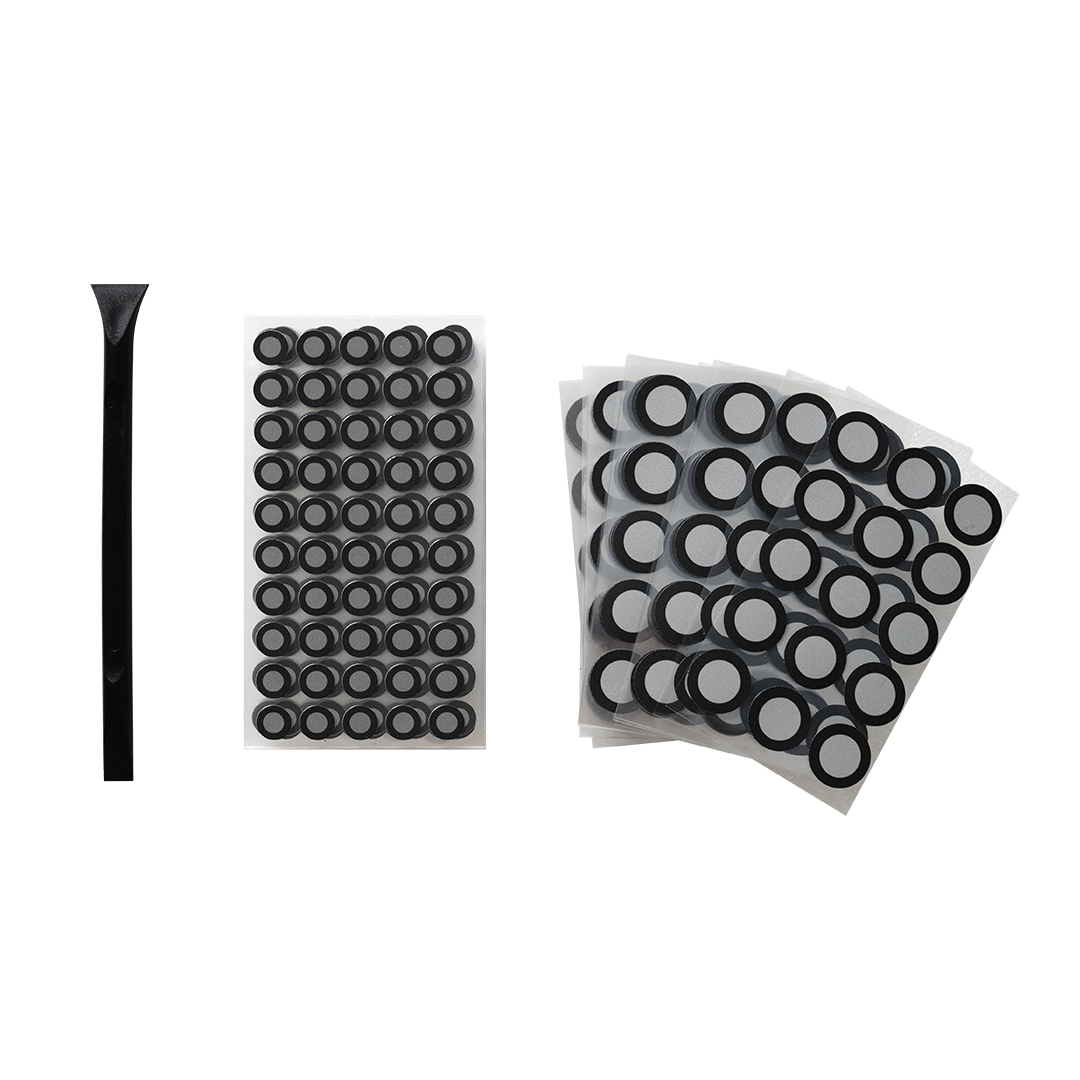

Markers Set & Markers Scraper
